>Product Introduction

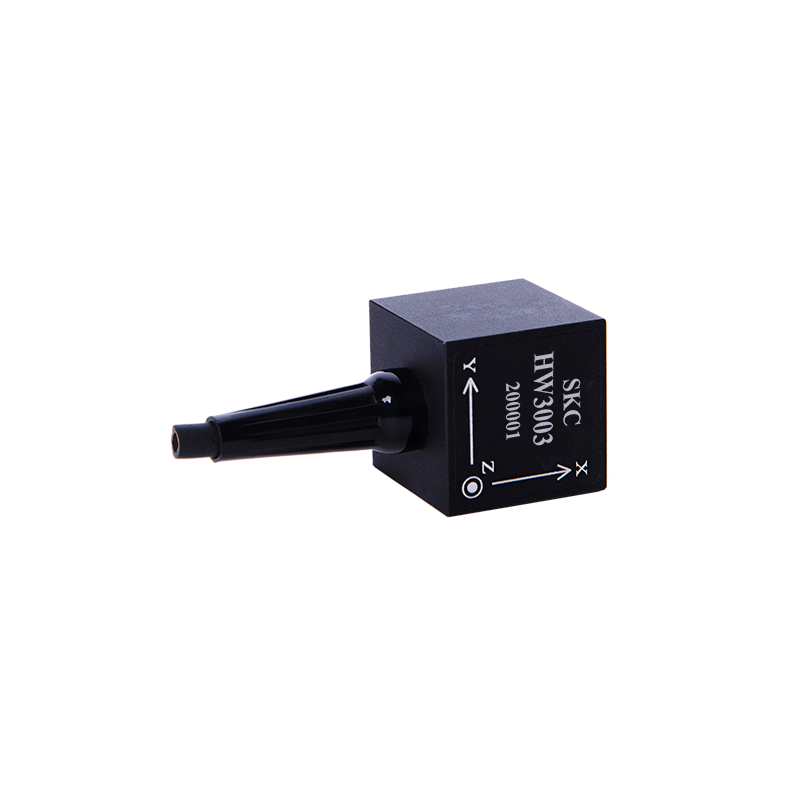

HW series accelerometer is a 3-axis accelerometer with low noise density and low power consumption. HW series sensors can perform high-resolution vibration measurement with very low noise. The accelerometer shell is made of hard aluminum alloy, which is lighter than the traditional accelerometer. The sensor adopts the overall outgoing line mode, which is convenient for connection and installation.
Advantages: strong anti electromagnetic interference ability.
This product can be used in aerospace, platform stability system, structural health monitoring, state monitoring, tilt detection, robotics, rail transit and other fields.
>Technical Parameter
Technical Parameter | HW3002 | HW3003 | HW3004 | HW3005 | HW3005B | HW3008 | HW3010 | HW3030 | HW3050 | HW3200 | 單位 |
1 | Measurement Range | ±2 | ±3 | ±4 | ±5 | ±5 | ±8 | ±10 | ±30 | ±50 | ±200 | g |
2 | The Amplitude-frequency Response X | DC～1000 | DC～1600 | DC～1000 | DC～1600 | DC-1000 | DC-1000 | DC-3000 | DC-3000 | DC-3000 | DC～6000 | Hz |
3 | The Amplitude-frequency Response Y | DC～1000 | DC～1600 | DC～1000 | DC～1600 | DC-1000 | DC-1000 | DC-3000 | DC-3000 | DC-3000 | DC～6000 | Hz |
4 | The Amplitude-frequency Response Z | DC～1000 | DC～550 | DC～1000 | DC～550 | DC-1000 | DC-1000 | DC-3000 | DC-3000 | DC-3000 | DC～6000 | Hz |
5 | Sensitivity | 400 | 300 | 200 | 174 | 400 | 100 | 135 | 66.7 | 40 | 10 | mv/g |
6 | Lateral Sensitivity | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | % |
7 | Degree Of Linearity | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ％FSO（max） |
8 | Accuracy | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 2.5 | 5 | 8.5 | 8.5 | mg |
9 | Operating Electricity | ≤8 | mA |
10 | Output Impedance | ≤ 100 | Ω |
11 | Power Supply Mode | Separate Power Supply |
12 | Power Supply | +8V～+15V（DC） |
13 | Temperature Range | -40~+120 ℃ |
14 | Material | Aluminium Carbide |
15 | Install | M5 Screw Mount/Adhesive |
16 | Weight | 19g（Typical)(None Wire） |
>Application Places and Industries
| 1.Inertial Measurement Unit (IMU)/ Aviation And Heading Reference System (AHRS). |
| 2.Platform Stabilization System. |
| 3.Structure Health Monitoring. |
| 4.Seismic Imaging. |
| 5.Tilt Testing. |
| 6.Robotics. |
| 7.Condition Monitoring. |
